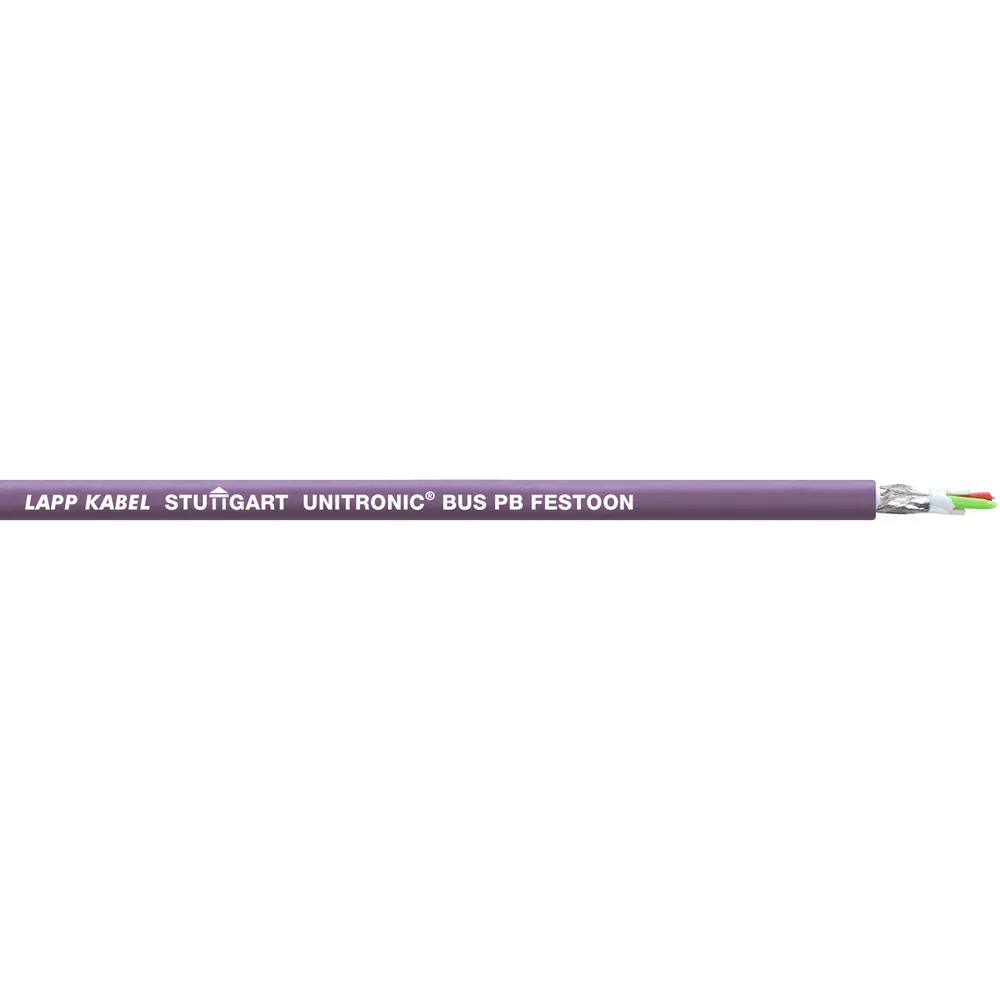

LAPP UNITRONIC BUS PB FEST.1X2X0,64 T500

UNITRONIC® BUS PB FESTOONPROFIBUS cable for cable trolley applicationsBus cable for PROFIBUS-DP, -FMS and FIP. UL/CSA-approvals (CMG, CL3, SUN RES, Oil Res I), Flame retardant CSA FT4UL, oil resistant UL OIL RES IOil-resistantMechanical and plant engineeringKompletterande automationskomponenter från LappFlame-retardantBenefitsCables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIPCL3 for installation on traysApplication rangePROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP -Factory Instrumentation Protocol).FESTOON: for cable trolley (festoon)Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply (cable type A, PROFIBUS-DP):93.75 kbit/s = 1200 m187.5 kbit/s = 1000 m500 kbit/s = 400 m1.5 Mbit/s = 200 mLast Update12.0 Mbit/s = 100 mWith UL/CSA certification (CMG, CL3, SUN RES, Oil Res I)Flame-retardant according to CSA FT4UL Vertical-Tray Flame TestOil-resistant according to UL OIL RES IOuter sheath: special PVC compoundMutual capacitance: (800 Hz): max. 30 nF/kmPeak operating voltage: 600 V (not for power applications)Minimum bending radius: Flexing: 70 mmFixed installation: 30 mm onceTest voltage: Core/core: 2000 VCharacteristic impedance: 150 ± 15 OhmTemperature range: Flexing: -5°C to +70°CFixed installation: -40°C to +80°C
