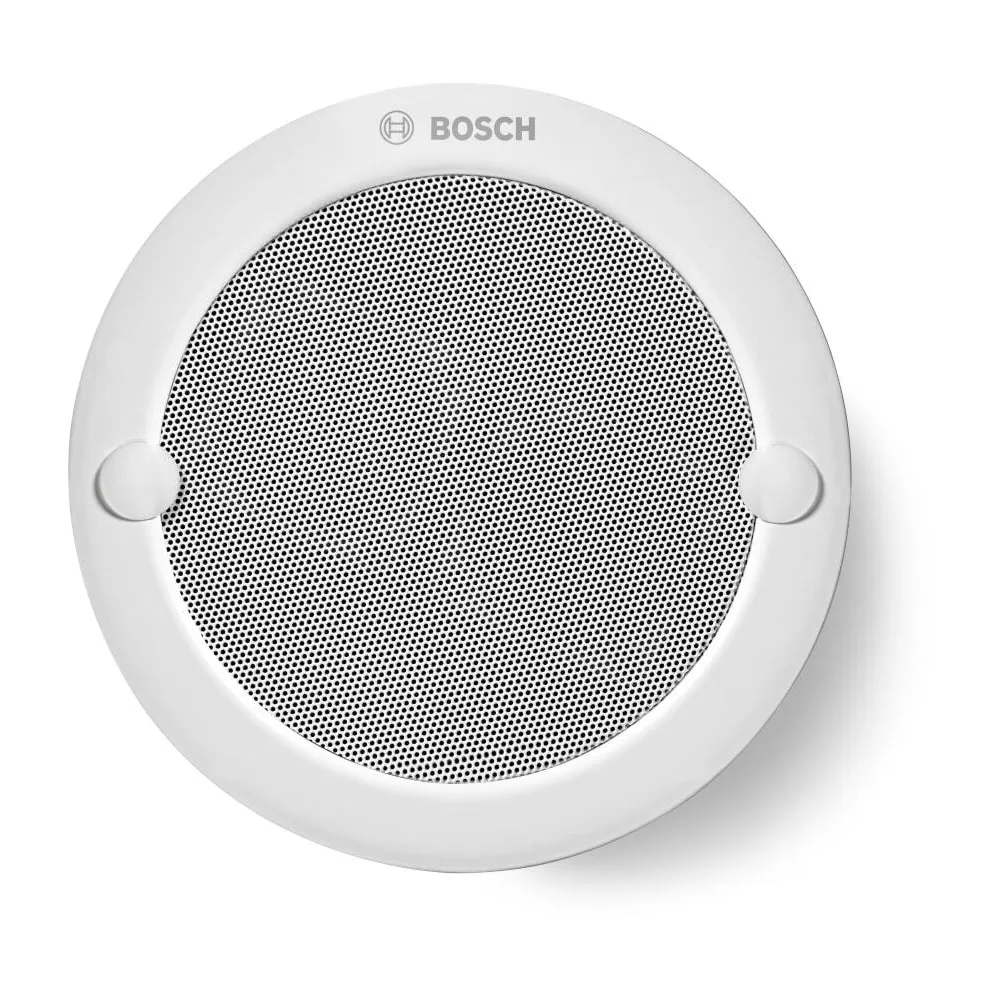

INDBYGNINGSHØJTTALER A/B 6W, HVID

Features / benefits LC7-UM06E3-A/B• Two independent 6 W loudspeaker systems in one housing• Standard supplied with metal fire-dome• A safety cord attached to the fire-dome ensures for easy installation and provides reassurance after installation• EN54-24 certified Teknisk information Rated power (PHC) 2 x 6 W (6-3 - 1.5 - 0.75 W) Sound pressure level at 6 W/1 W (1 kHz, 1 m) 95 / 87 dB (single driver) 98 / 90 dB (both drivers) Sound pressure level at 6 W/1 W (1 kHz, 4 m) 84 / 75 dB (single driver) 88 / 78 dB (both drivers) Frequency response (-10 dB) 316 Hz to 20 kHz Opening angle at 1 kHz / 4 kHz (-6 dB) 180°/ 170° (single driver) 180°/ 170° (both drivers) Rated voltage: 100 V Rated impedance: 1667 Ohm @ 6 W Connector 2 x 2-pole ABS screw terminal block Acceptable wire gauge 0.5 to 4 mm2 * Technical performance data acc. to IEC 60268-5 Mechanical Diameter 220 mm Maximum depth 95 mm Allowable ceiling thickness 9 to 25 mm Mounting cut-out 207 mm Weight 1.78 kg Color Ceiling speaker: White (RAL 9003) Fire-dome: Red (RAL 3000) Environmental Operating temperature -10 ºC to +55 ºC Storage and transport temperature -40 ºC to +70 ºC Relative humidity < 95%
