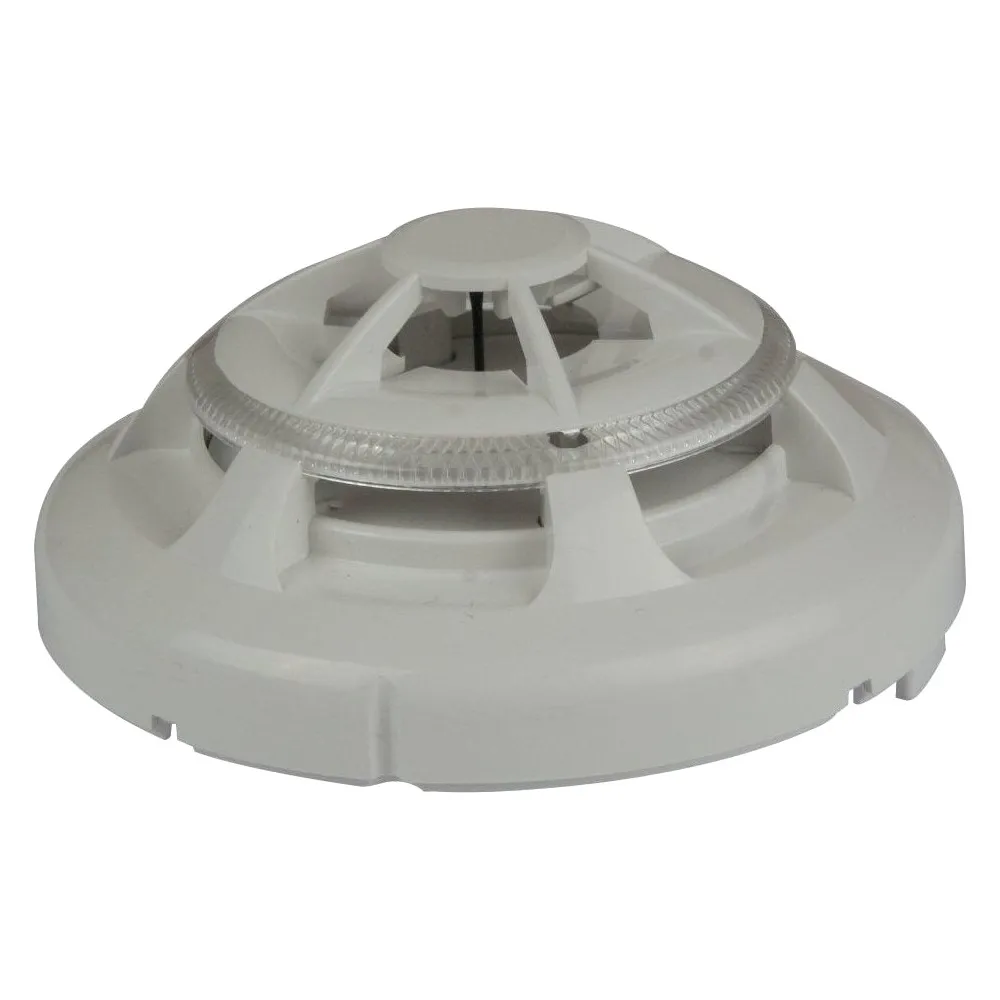

DET.VARME 54-70 GR.,KL.1 U/SOK

Part Number – – – – – – EVC-HDescription – – – – – – Conventional Heat DetectorComputer Reference Number – – – – Class A2S F04N82505Class CS F04N82507Technical Specifications:-Sensor Element – – – – – – ThermistorOperating Voltage – – – – – 11V d.c. to 32V d.c.System Voltage – – – – – – 24V d.c.Quiescent Current – – – – – 30µAAlarm Current – – – – – – 50mA@ 24vCurrent for external remote LED indicator – – Limit to 20mA maxTypical Application Temperature – – – A2S: 25°C , CS: 55°CMaximum Application Temperature – – – A2S: 50°C , CS: 80°CMin. and Max. Static Response Temperature – A2S: 54°C / 70°C, CS: 84°C / 100°CMinimum Ambient Temperature – – – – Both -10°CStorage Temperature – – – – – – 25°C to + 90°CCharging Time – – – – – – 30 SecondsRelative Humidity – – – – – – £ RH95% non-condensing.I.P. Protection Rating – – – – – IP42Material – – – – – – – – ABSDimensions – – – – – – Ø105mm x 42.5mm (Sensor head)Ø105mm x 57.5mm (Sensor head and UB-4)Mass – – – – – – – – 118g (Sensor head)183g (Sensor head and UB-4 base)EMC Conformance – – – – – BSEN50130-4CE Conformity – – – – – – 0832-CPD-0224 & 0225Standards / Certification EN54-5 LPCB 041 Varmedetektor 25-90 gr. C
