ADDR. VÆG SOKKELBLITZ , HVID, INTELLIA

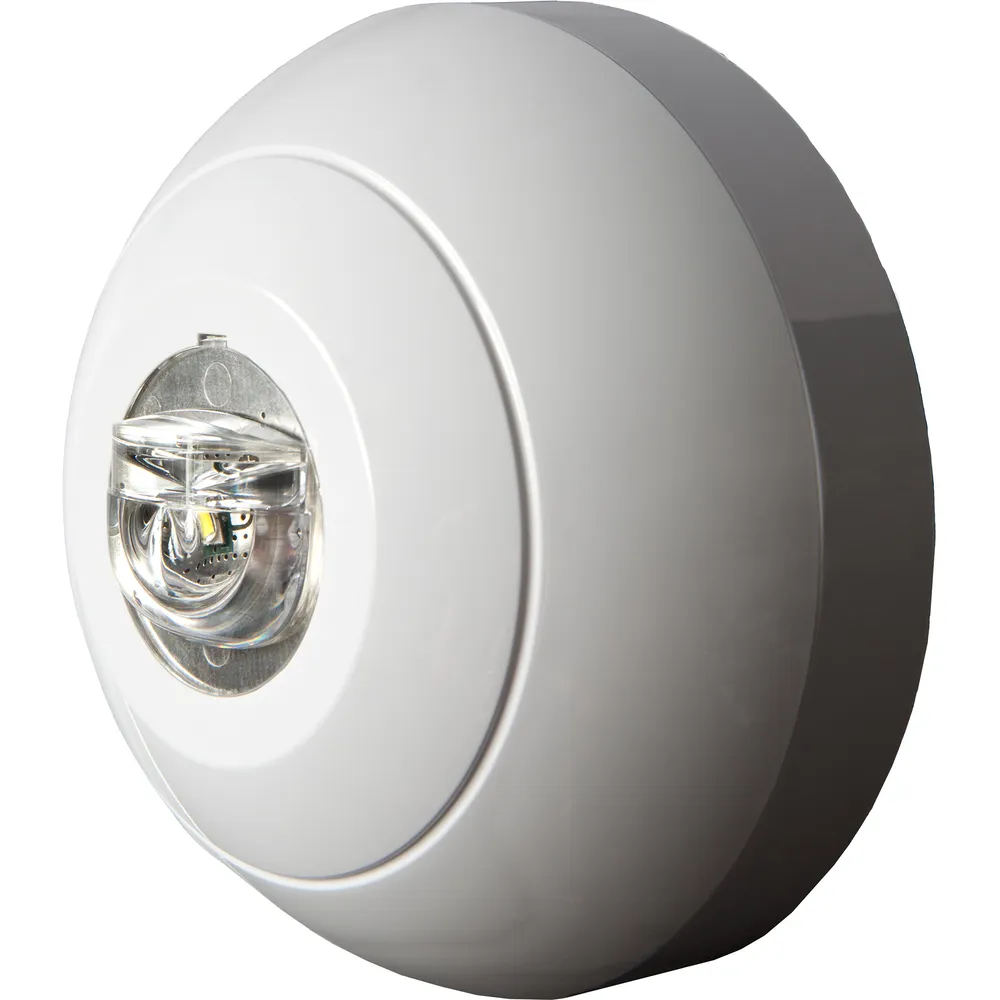

55000-744APO vægmonteret sokkel blitz Adresserbar blitz til vægmontage. Enheden monteres i standard detektor sokkel EBI-12, isolator sokkel EBI-11 eller lydgiver sokkel ESI-10 eller ESI-20. Huset og blitz er hvid. EN54-23 W-2.5-7. Til FX 3NET/FDP central med ALC sløjfekort Operating voltage: 17 – 28 VDC (polarity insensitive) Flash rate: 0.5Hz Coverage class: C-3-8 and C-3-15 Current consumption at 24 VDC - quiescent 150 µA (C-3-x) 100 µA (W-2.4-6) - Alarm current (LED on) 9.4 mA (C-3-8) 12mA (W-2.4-6) 26.6 mA (C-3-15) Vibration, impact and shock: EN54-23 IP Rating: IP23D Approval and Standards: EN54-23, CPR & LPCB Operating temperature: –40 °C to +70 °C Humidity (no condensation): 0 – 95 % Dimensions (Ø x H): 100 x 50 mm 100 x 48 mm (W-2.4-6) Weight: 105 g Bases: Deep base: EBI-12 FFS0672 0012 Relay: EBI-20 FFS0672 0020 Isolator: EBI-11 FFS0672 0011
