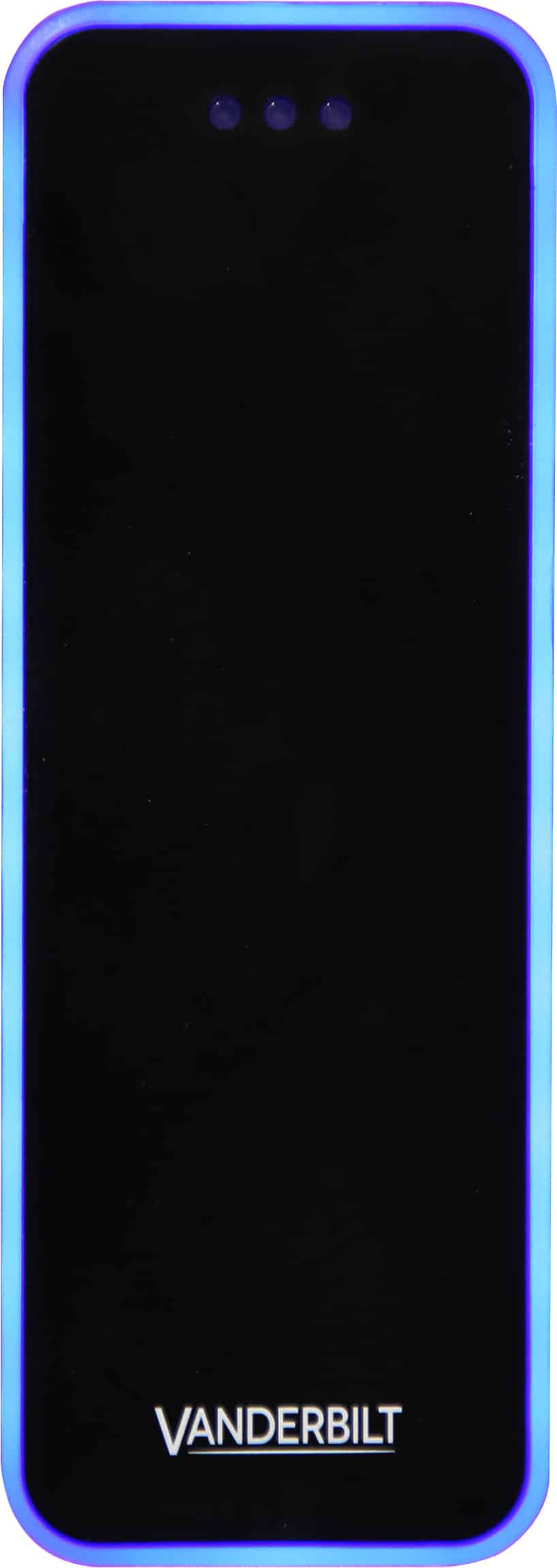

VR20M-MF MIFARE LÆSER UDEN TASTATUR.OSDP

Modern attractive looking and hardwearing materials which endure the most challenging weather conditions. Multicolour programmable light frame on all readers which enhance the look and functionality of the reader. The customer can choose colours for each outcome and rest state.Key Features include:• Multicolour LED light frame• Auto dim in reduced light• OSDP or Wiegand connectivity• MIFARE card technology including EV1 and EV2• Hardwearing materials• IK class 08 and -40°C to +70°C temperature• Easy to mount and connect• Card, card and pin, and pin only functionalityMontage vejledning af VR20/50: https://solarsikring.dk/24-7/thread-2235.html Teknisk information Protocol: OSDP / Wiegand Interface to controller: RS485 / Wiegand Operating voltage: 8.5 – 30.0 VDC Power: DC 12V 50mA Peak 150mA, DC 24V 35mA Peak 100mA Tamper protection: Yes Card technology: MIFARE Card compatibility: MIFARE Classic MIFARE Plus (UID only) MIFARE DESfire EV1, EV2 Indicators: 3 x LED (red/yellow/green), 1 x Buzzer, Multicolour light frame Keypad: No Display: No IK class: 08 Housing: Zinc casted metal bezel with polycarbonate plastic front Colour: Black, matt chrome Dimensions (W x H x D): 48x129x22 Approvals: CE according to R&TTE and EMC Directives, RED Temperature: -40°C to +70°C IP class: IP55
