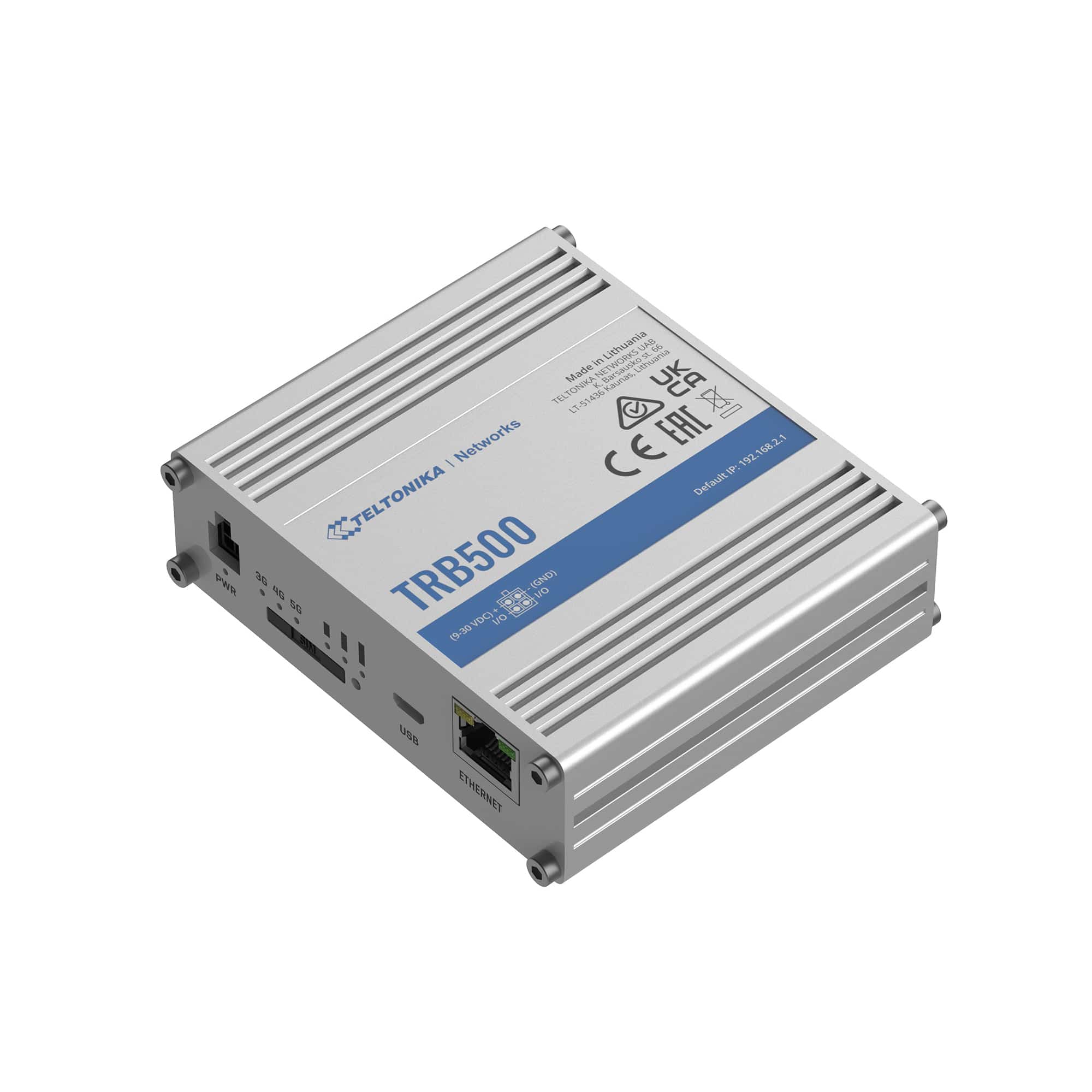

TRB500 5G ETHERNET GATEWAY

The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios.This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput, ensured by 4 external antennas that allow the use of 4x4 MIMO.TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring capabilities of large fleets of devices.MOBILE5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps ULSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilitiesSupports sending and reading Unstructured Supplementary Service Data messagesOperator black/white listBand lock, Used band status displayAuto APNDirect connection (bridge) between mobile ISP and device on LANGateway assigns its mobile WAN IP address to another device on LANETHERNETLAN: 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossoverINPUT/OUTPUT2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 40 V detected as logic high. Open collector output, max output 30 V, 300 mAOutput controlHTTP POST/GET, ScheduleEventsSMS, EMAILAllows setting certain I/O conditions to initiate eventPOWERConnector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us maxPower consumptionIdle: <3 W, Max <6 W
