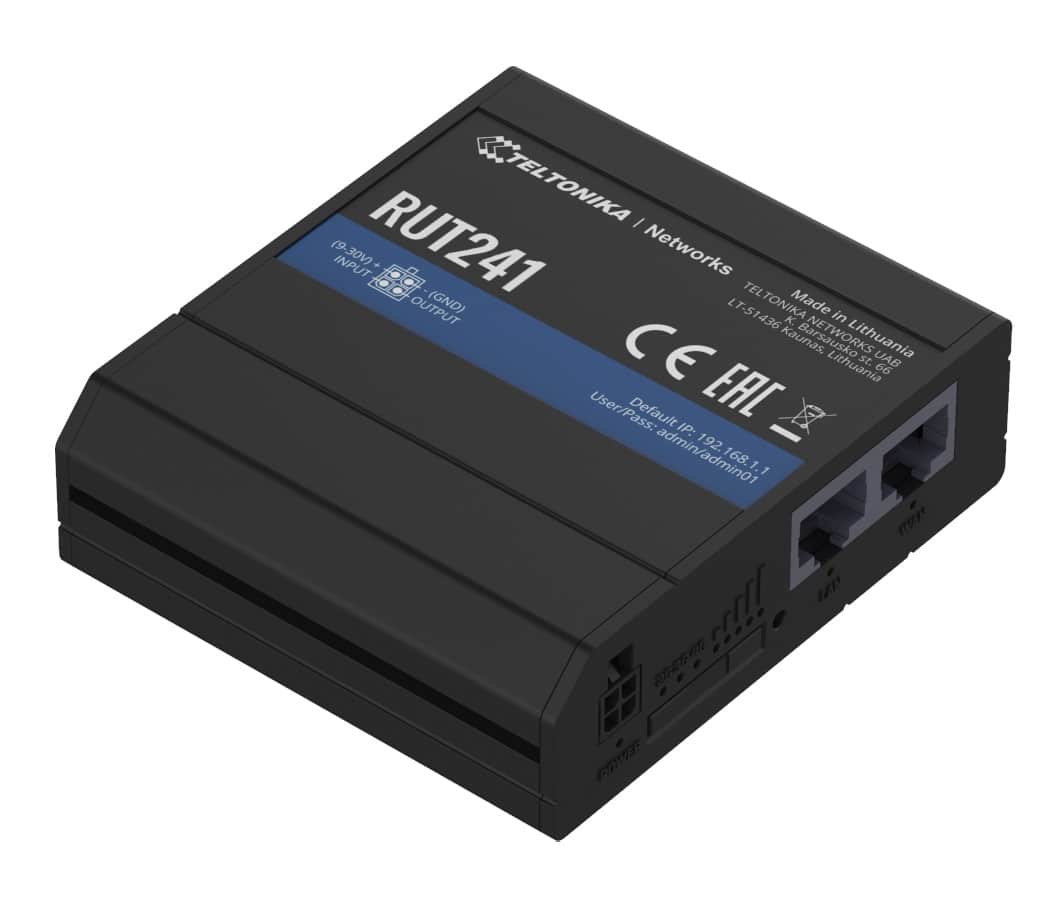

RUT241 4G/LTE CAT 4 INDUSTRIEL ROUTER

RUT241 is the modified version of our all-time bestseller RUT240 that inherited its' best features, including industrial design, compact size, multiple connection interfaces, and compatibility with RMS.Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router offers unstoppable connection continuity with a backup through automatic failover.Digital Inputs and Outputs coupled with advanced RutOS software enable solution automation scenarios.RUT241 is an excellent fit in various IoT and M2M solutions that require easy setup, reliable network, and remote accessibility.MOBILE4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCIDSMS status, SMS configuration, send/read SMSOperator black/white listBand lock, Used band status displayAuto APNDirect connection (bridge) between mobile ISP and device on LANRouter assigns its mobile WAN IP address to another device on LANPossibility to use different PDNs for multiple network access and services (not available in standard FW)WIRELESSIEEE 802.11b/g/n, Access Point (AP), Station (STA)WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separationSSID stealth mode and access control based on MAC addressUp to 50 simultaneous connectionsCaptive portal (Hotspot), internal/external Radius server, built in customizable landing pageETHERNET1 x WAN port (can be configured to LAN) 10/100 Mbps1 x LAN port, 10/100 MbpsPHYSICAL INTERFACESEthernet 2 x RJ45 ports, 10/100 MbpsI/O’s 1 x Digital Input, 1 x Digital Output on 4 pin power connectorStatus LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LEDSIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holderPower 1 x 4 pin DC connectorAntennas 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectorsReset Reboot/Factory reset button
