ÖLFLEX CLASSIC 110 SY 12G0,75 T500

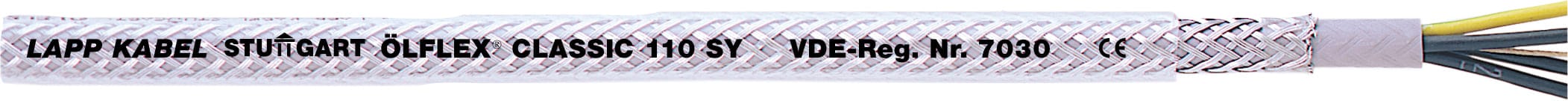

ÖLFLEX® CLASSIC 110 SYSteel-wire braided PVC control cable with transparent outer sheathÖLFLEX® CLASSIC 110 SY - PVC control cable, VDE registered and with steel wire braid, flexible cable for various applications, U0/U: 300/500VCPR: see www.lappkabel.dkVDE reg. no. 7030Steel wire braiding for extra mechanical protectionMechanical resistanceGood chemical resistanceExtra mechanical protection due to braided steel wireHigh electrical performance due to 4 kV test voltagePlant engineeringIndustrial machineryHeating and air-conditioning systemsAreas with high mechanical stressFor fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile loadFlame-retardant according IEC 60332-1-2Good chemical resistance.Fine-wire strand made of bare copper wiresPVC insulation LAPP P8/1Cores twisted in layersPVC inner sheath, greyBraid of galvanized steel wiresPVC outer sheath, transparent Core identification code: Black with white numbers acc. to VDE 0293-1Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5Minimum bending radius: Occasional flexing: 20 x outer diameterFixed installation: 6 x outer diameterNominal voltage: U0/U: 300/500 VTest voltage: 4000 VProtective conductor: G = with GN-YE protective conductorX = without protective conductorTemperature range: Occasional flexing: -5°C to +70°CFixed installation: -40°C to +80°C
