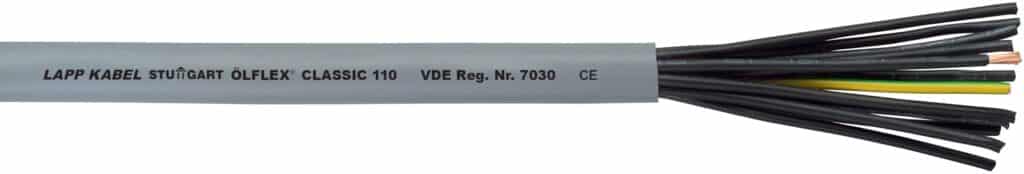

ÖLFLEX CLASSIC 110 10G0,75 T500

ÖLFLEX® CLASSIC 110VDE-registered oil-resistant PVC control cable for a wide range of applicationsÖLFLEX® CLASSIC 110 - PVC control cable, VDE registered, oil resistant and flexible for various applications, 300/500V, alsofor YSLY or YYCPR: see www.lappkabel.com/cprVDE certificate of conformity with factory surveillance.Very broad range, items with up to 100 conductorsFor fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile loadDry or damp rooms that are subject to medium mechanical loadsSuitable for torsional applications which are typical for the loop in wind turbine generators (WTG)In power chains for a travelling distance up to 5 m and 0,2 ... 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors.Flame-retardant according IEC 60332-1-2Good chemical resistance.Oil-resistant according to DIN EN 50290-2-22 (TM54)VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 - 65 coresfrom 4 mm²: 2 - 7 coresfrom 25 mm²: 2 - 5 coresFine-wire strand made of bare copper wiresPVC insulation LAPP P8/1Cores twisted in layersPVC outer sheath, grey (similar RAL 7001) Core identification code: Black with white numbers acc. to VDE 0293-1Conductor stranding: Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC60228 class 5Torsion movement in WTG: TW-0 & TW-1.Minimum bending radius: Occasional flexing: 10 x outer diameterIn power chains: 15 x outer diameter. Fixed: 4 x outer diameterNominal voltage: U0/U: 300/500 VTest voltage: 4000 VProtective conductor: G = with GN-YE protective conductor. X = without GN-YETemperature range: Occasional flexing: -15°C to +70°CIn power chains: -5°C to +70°CFixed installation: -40°C to +80°C
