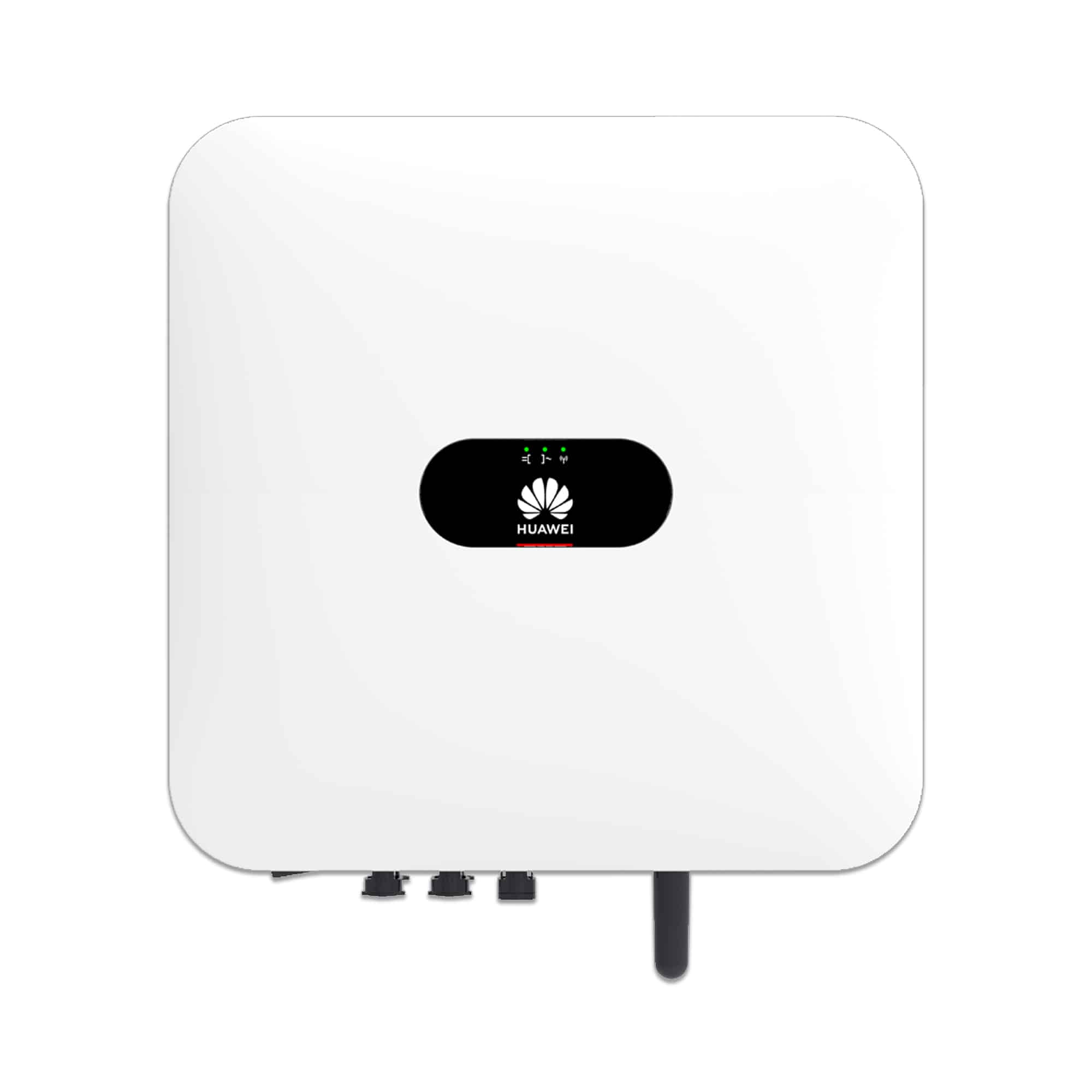

HUAWEI SUN2000L-3.68KTL L1 INVERTER

Huawei SUN2000-3.68KTL-L1. 1 Transformerløs 1-faset hybridinverter med WLAN, effekt på 3,68 kW. 2 MPP tracker Indbygget WLAN modulTechnical SpecificationSUN2000L-3.68KTL-L1Input:Recommended max. PV power 5,520 WpMax. input voltage 600 V Operating voltage range 90 V~ 560 V The maximum input voltage and operating voltage upper limit will be reduced to 495 V when inverter connects and works with LG battery. (Only applicable for PV string.)Start-up voltage 100 VFull power MPPT voltage range 90 V ~ 560 VRated input voltage 360 VMax. input current per MPPT 13 AMax. short-circuit current 15 ANumber of MPP trackers 2Max. number of inputs per MPPT 2Output :Grid connection Single phaseRated output power 3,680 WMax. apparent power 3,680 VARated output voltage 220 V / 230 V / 240 VRated AC grid frequency 50 Hz / 60 HzMax. output current 16 AAdjustable power factor 0.8 leading ... 0.8 laggingMax. total harmonic distortion = 3 %EfficiencyMax. efficiency 98.4 %European weighted efficiency 97.3 %General DataOperating temperature range -25 ~ +60 °C (Derating above 45°C @ Rated output power)Relative operating humidity 0 %RH~100 %RHOperating altitude 0 - 4,000 m (Derating above 2,000 m)Cooling = Natural convectionDisplay LED indicatorsCommunication RS485, WLAN via inverter built-in WLAN moduleEthernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)Weight (incl. mounting bracket) 12.6 kgDimension (incl. mounting bracket) 365 * 365 * 140 mm Degree of protection IP65Battery Compatibility LG Chem RESU 7H_R / 10H_RHUAWEI PowerMate ESS Battery LUNA2000-5/10/15-S0
