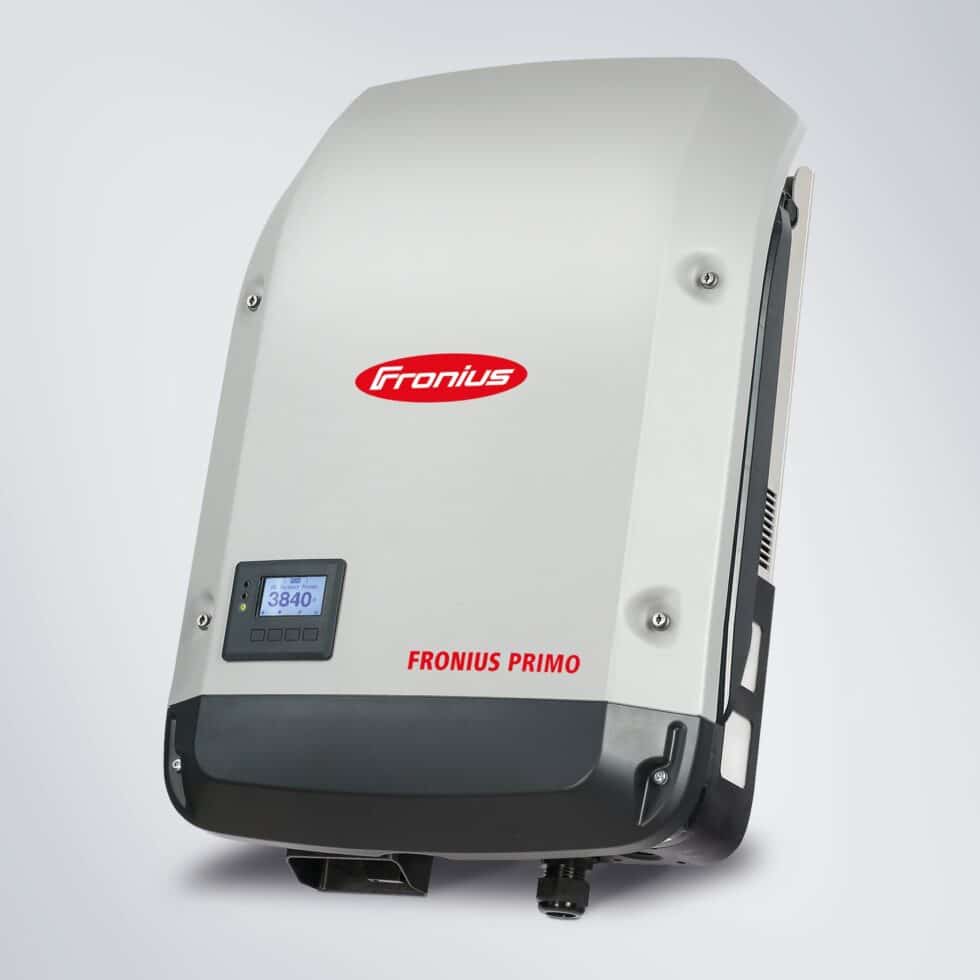

FRONIUS PRIMO 3.6-1-M LIGHT INVERTER

Fronius Primo 3.6-1-M 1-faset Inverter effekt på 3,6kW. Ingen opkobling til internet - skal tilkøbes. 2 MPP Trackere,Retrofit - Denne kan udskifte en Danfoss TLX ( 1 Faset med 2 MPP Tracker )INPUT DATANumber of MPP trackers 2,0 Max. input current (Idc max) 12 / 12 A Max. short circuit current, module array 18 / 18 A DC input voltage range (Udc min - Udc max) 80 - 1000 V Feed-in start voltage (Udc start) 80,0 V Usable MPP voltage range 80 - 800 V Number of DC connections 2 + 2 Max. PV generator output (Idc max) 5,5 kWpeak OUTPUT DATAAC nominal output (Pac,r) 3680,0 W Max. output power (Pac max) 3680,0 VA AC output current (Iac nom) 16,0 A Grid connection (Uac,r) 1~ NPE 220/230 V AC voltage range (Umin - Umax) 180 - 270 V Frequency (fr) 50 / 60 Hz Frequency range (fmin - fmax) 45 - 65 Hz Total harmonic distortion Power factor (cos fac,r) 0,85 - 1 ind./cap GENERAL DATAHeight 645,0 mm Width 431,0 mm Depth 204,0 mm Weight 21,5 kg Degree of protection IP 65 Protection class 1,0 Overvoltage category (DC / AC) : 2 / 3 Night-time consumption Inverter design Transformerless Cooling Regulated air cooling Installation Indoors and outdoors Ambient temperature range -40°C - +55°C Permitted humidity 0 - 100 % Max. altitude 2) 4.000 m DC connection technology4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² AC connection technology3-pin AC screw terminals 2.5 - 16 mm²"
