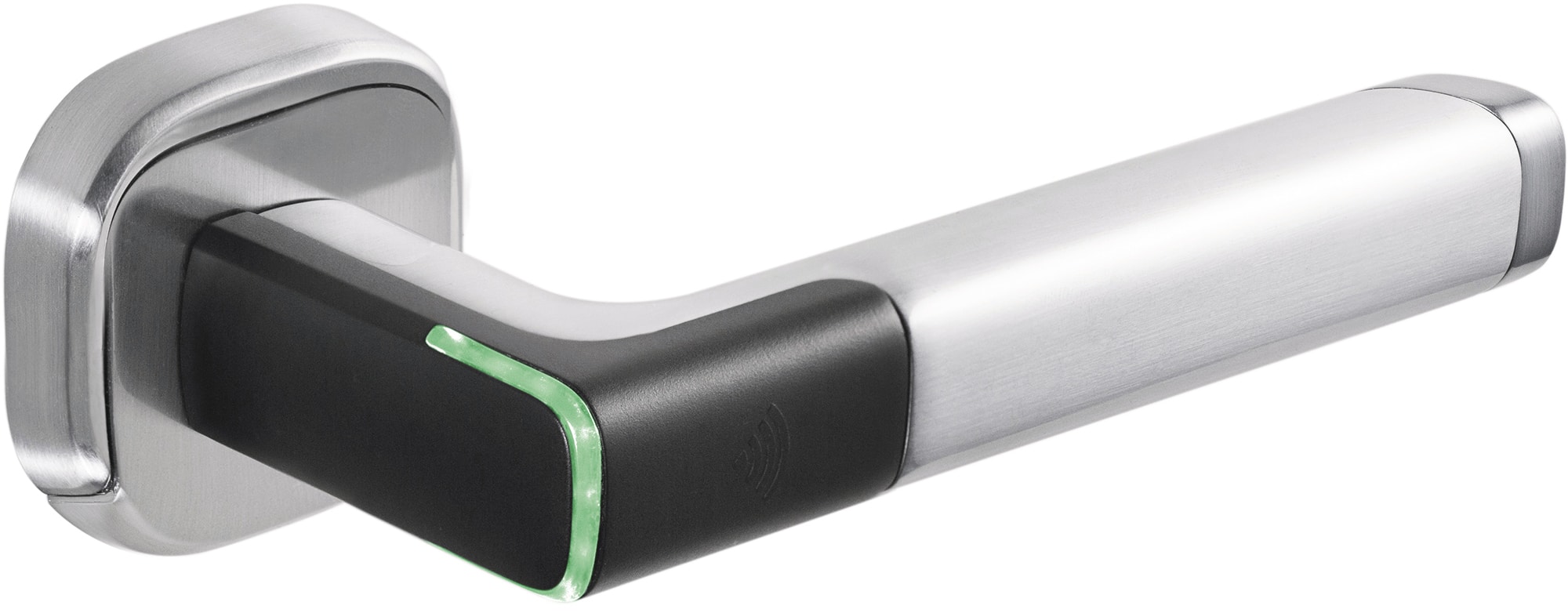

ACT APERIO H100 EURO HØJRE

Product description• Wireless Aperio® handle which can be integrated into any access control system via AADP protocol integration or via Aperio Wiegand Hub• Can be used with the most common European (DIN) mortise locks - in wooden, steel, and tubular-frame doors (and glass doors with standard lock cases)• Online or offline mode is selected in software during product initialization (accessories PAP tool and radio dongle or cable required)• When online, communication from hub to the Online Access Control System (addressable) - access decision in the EAC system• All electronics and functionality are in the outside part of the handle• Outside handle rotates freely - inside handle always engaged• LED for status visualization• Discrete handle with minimum footprint and contemporary designScope of delivery• 1 pair of handles with battery (Lithium CR123A) and installation instructions• Cuttable fixing screws• 7 mm and 8 mm spindle• Accessories pack Authentication: One level of authentication - CARD only Approvals: CE, EN1906: 26-B010B Dimension: 55 x 55 x 13,5 mm (Rose dimensions H x W x D) Version: Interior doors Handle: L-Shape, U-Shape through adapter (accessory) Surface: Satin chrome Spindle: 7 mm and 8 mm spindle and 7-8 mm adapter included, 9 mm available as accessory Door leaf thickness: Between 35-80 mm but with accessory “10 mm distance ring” thinner doors can be used Battery: 1 x Lithium CR123A Battery life (Based on reader type): High Frequency Multiclass: 30 openings per day for 50 months Radio standard: IEEE 802.15.4 (2.4 GHz) Encryption (radio communication): AES 128 bits Distance between the RFID-Reader and hub: Up to 25m depending on the building environment Class of protection: Indoor use Operating temperature range: 0°C to 55°C Relative humidity: < 85% (condensation-free) Status: LED (red/green/orange) RFID Technologies (Based on reader type): High Frequency Multiclass : iCLASS®/ISO 14443B; iCLASS® Seos; MIFARE™ Classic; MIFARE™ Plus; MIFARE™ DESFire™ EV1 RFID reading: UID / Sector / Block / Application / File RFID Reading range: < 4 cm Communication interfaces: Communication via radio (USB dongle) or USB type B adapter (accessory) Offline and Online operation modes: Aperio® Online; Aperio® Offline; Aperio® Standard OSS Offline
