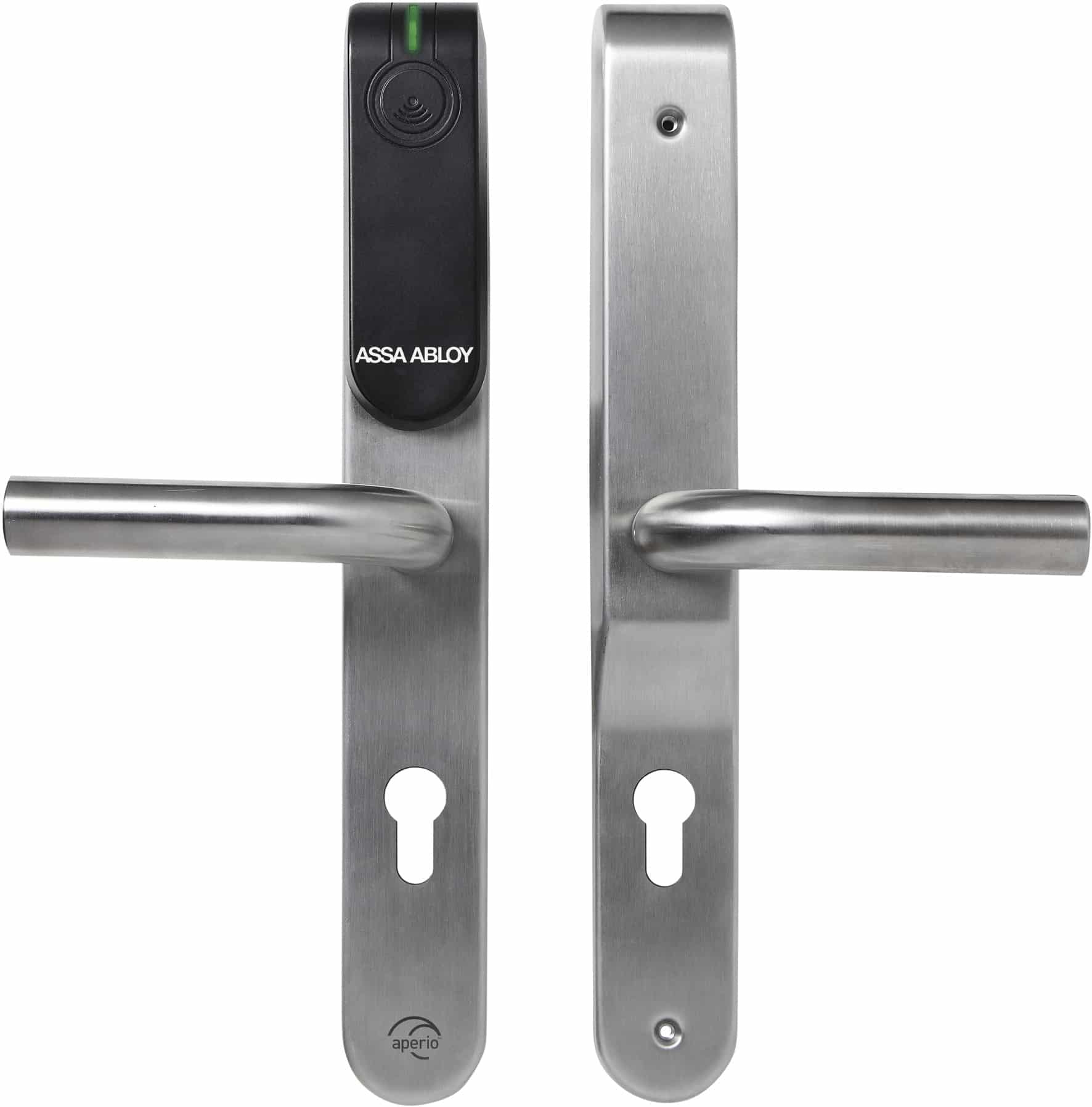

ACT APERIO E100 EURO

Product description• Communication from hub via RS485 bus to the Online Access Control System (addressable) - access decision in the EAC system• Can be used with all European (DIN) mortise locks - in wooden, steel and tubular-frame doors• Main electronics (RFID + radio) outside - security-relevant electronics inside• Outside handle rotates freely - inside handle always engaged• Override Credentials: Up to 10 override credentials can be stored for an emergency access in case of failure or no communication with the access control or the hub.• Smart Credential-Handling: Zusätzlich zu den Notkarten können die zuletzt berechtigten Begehungen (bis 1000) automatisch und zeitlich begrenzt (bis 30 Tage) zwischengespeichert werden, damit eine Öffnung trotzdem und ohne Eingreifen des Administrators möglich ist.• LED for status visualisationScope of delivery• 1 escutcheon with battery (Lithium CR123A) and installation instructions• Screws, drilling template and tool (for inserting cables)• DIN72• 8mm grebspind• Indendørs brug Authentication: Three levels of autentification (PIN only, CARD only, PIN & CARD combined) Code: PIN code - 4 up to 8 digits Approvals: CE Dimension: 312 x 41 x 10/20 mm (H x W x D) Version: Basic = interior and exterior doors up to grade 2 Handle: L-Shape, U-Shape Surface: Stainless steel brushed (ST) Distance: Distance 72 mm, 92 mm; Spindle 8 mm, 9 mm, 10 mm Door leaf thickness: Door leaf between 40 and 100 mm thick, in 10 mm increments Backset: > 40 mm Battery: 1 x Lithium CR123A Battery life: 30 openings per day for 49 months Radio standard: IEEE 802.15.4 (2.4 GHz) Encryption (radio communication): AES 128 bits Distance between the RFID-Reader and hub: Typical range 25 m depending on the hub type and building environments Class of protection: Indoor use Operating temperature range: 0°C to 60°C Relative humidity: < 85% (condensation-free) Status: LED (red/green/orange) RFID Technologies (Based on reader type): High Frequency: iCLASS®/ISO 14443B; MIFARE Classic® / MIFARE® DESFire® EV1&EV2; Legic: LEGIC® (Advant, Prime, ISO/IEC14443 UID, ISO/IEC15693 UID); Optional MIFARE® Support RFID reading: UID / Sektor / Block / Application / File / LEGIC® Segment Data RFID Reading range: < 4 cm Communication interfaces: Micro USB firmware download and battery back up
