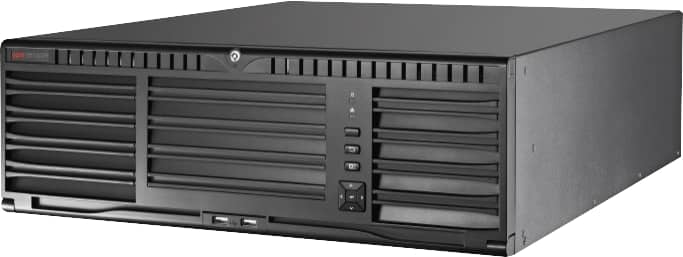

128 kanal NVR, 768Mbps, Uden HDD

DS-96128NI-I16Super 4K NVR • Third-party network cameras supported• Up to 12 Megapixels resolution recording• Video outputs at up to 4K (4096*2160) resolution•Supports decoding up to 20 channels at 1080P resolution• Up to 128 IP cameras can be connected with 768M incoming bandwidth• 16 SATA interfaces• Supports H.264+,H.264,MPEG4,H.265,MJPEG video format• Support redundant power supply to improve the system stability• Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable•Support various VCA detection alarm and VCA search Teknisk information IP video input: 128-ch Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kO) Network Incoming bandwidth: 768Mbps Outgoing bandwidth: 512Mbps Remote connection: 256 Video/Audio Output HDMI Output: 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Audio Output: 1-ch, RCA (2.0Vp-p, 1KO) VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz Decoding Live view / Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Capability: 20+48 ch @1080P Hard Disk SATA: 16 SATA interfaces for 16 HDDs miniSAS (Optional): 2 miniSAS interface eSATA: 1 eSATA interface Capacity: Up to 8TB capacity for each HDD Disk array Array type: RAID0, RAID1, RAID5, RAID6, RAID10 Number of array: 8 External Interface Optic fiber interface: 4 1000 Mbps optional optic fiber interfaces Network Interface: 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces Serial Interface: RS-232, RS-485, Keyboard USB Interface: Front panel: 2 × USB 2.0 Rear panel: 2 × USB 3.0 Alarm In: 16-ch Alarm Out: 4-ch General Power Supply: 100-240 VAC, 550W Consumption(without hard disk and POE): = 140W Working Temperature: 0 ºC ~ +50 ºC Working Humidity: 10 % ~ 90 % Chassis: 3U chassis Dimensions: 442 × 494 146 mm Weight(without HDD): =16kg
