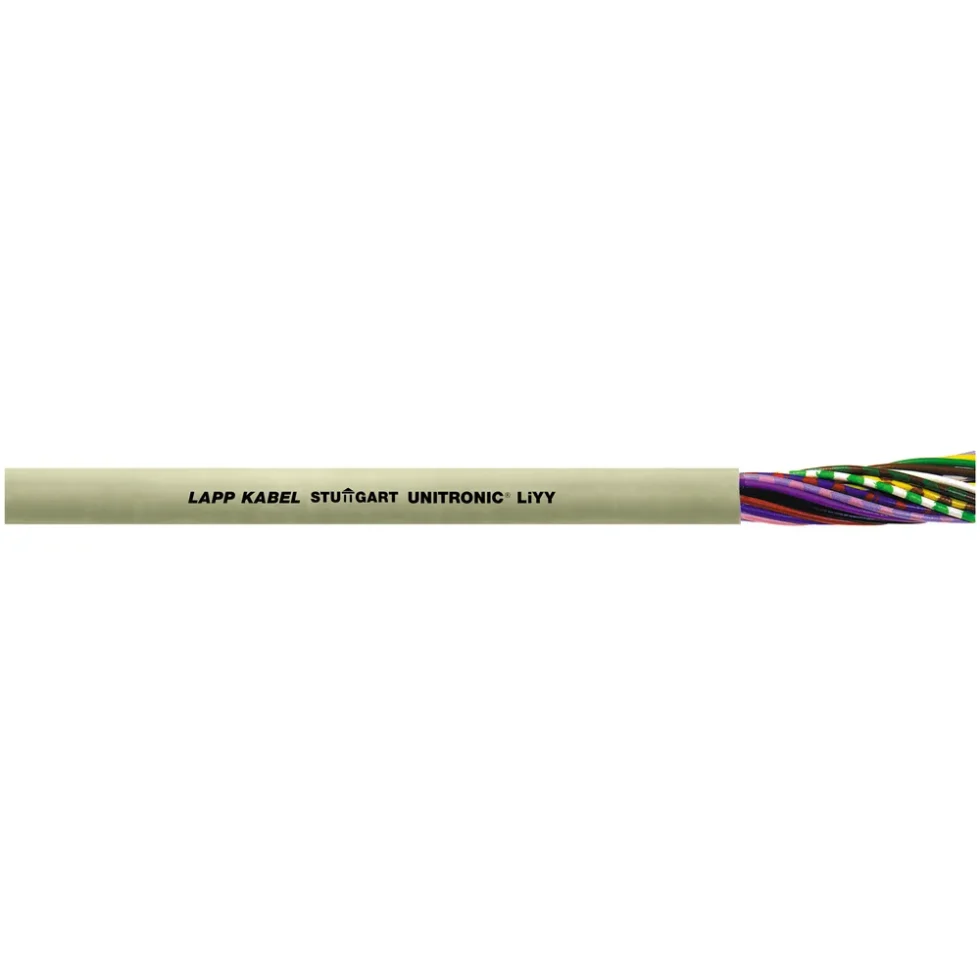

UNITRONIC LIYY 40X0.34 T500

UNITRONIC® LiYYData transmission cable with colour code acc. to DIN 47100UNITRONIC® LiYY: Low-frequency PVC data cable DIN47100 coded Flexible (0.34mm² multi-wire Maxi TERMI-POINT®)Flame retardant, Instrumentation Control AutomationThe classic for multi-functional useFurther dimensions/colours on requestSpace-saving installation due to small cable diametersMultifunctional application possibilitiesDepending on the quantity, the outer sheath can also be produced in other colours to match your application needsUNITRONIC® LiYY is also used as a control and signal cable in electronics of computer systems, electronic control equipment, office machines, balances, etc.Dry or damp roomsOccasional flexingProduct featuresDespite the large number of cores, LiYY data cables have small outer diametersFlame-retardant according IEC 60332-1-2Based on VDE 0812Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wiresCore insulation made of PVCOuter sheath made of PVCOuter sheath colour: pebble grey (RAL 7032)Classification ETIM 5: ETIM 5.0 Class-ID: EC000104ETIM 5.0 Class-Description: Control cableClassification ETIM 6: ETIM 6.0 Class-ID: EC000104ETIM 6.0 Class-Description: Control cableCore identification code: DIN 47100Mutual capacitance: Approx. 120 nF/kmPeak operating voltage: (not for power applications)at 0.14 mm²: 350 Vat = 0.25 mm²: 500 VInductivity: approx. 0.65 mH/kmConductor stranding: Stranded, fine-wire0.34 mm²: 7-wireMinimum bending radius: Occasional flexing: 10 x outer diameterFixed installation: 4 x outer diameterTemperature range: Occasional flexing: -5°C to +70°CFixed installation: -40°C to +80°CLast Update
