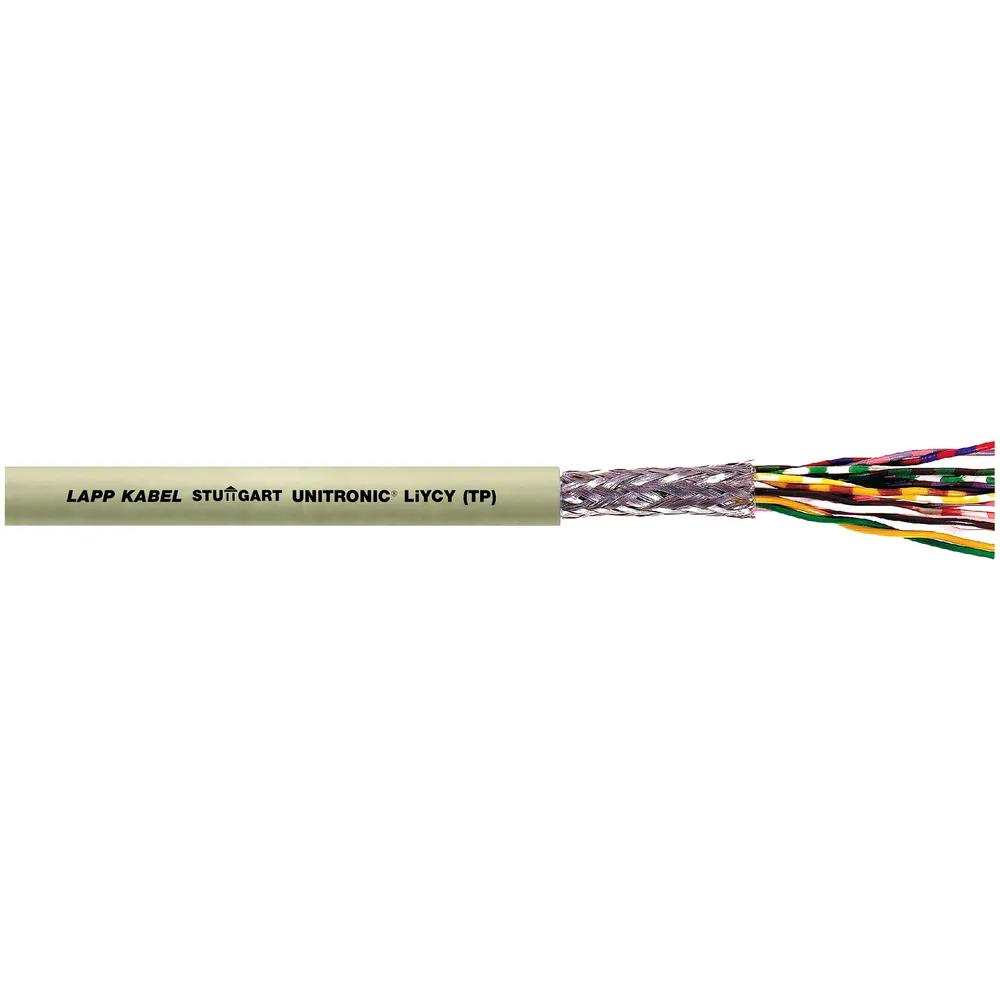

UNITRONIC LIYCY (TP) 3X2X1 T500

UNITRONIC® LiYCY (TP)Screened data transmission cable with colour code acc. to DIN 47100 and twisted pairsUNITRONIC® LiYCY (TP): Low-frequency PVC data cable, DIN 47100 coded, 0.34² Maxi TERMI-POINT®, Twisted pairs,Flame retardant, Screened, Instrumentation ControlTP = twisted pairFurther dimensions/colours on requestDecoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)Overall braid minimises electrical interferenceApplication rangeCan be used multifunctional in electronics of computer systems, electronic control equipment, office machines, balances, etc.Dry or damp roomsGood protection against capacitive interference from electric fields (e.g. power cable)Flame-retardant according IEC 60332-1-2Based on VDE 0812Fine-wire strand made of bare copper wiresCore insulation made of PVCTP structureTinned-copper braidingOuter sheath made of PVCOuter sheath colour: pebble grey (RAL 7032)Core identification code: DIN 47100Mutual capacitance: C/C: approx. 120 nF/kmC/S: approx. 160 nF/kmPeak operating voltage: (not for power applications)at 0.14 mm²: 350 Vat = 0.25 mm²: 500 VInductivity: approx. 0.65 mH/kmConductor stranding: Fine copper wire strandsMinimum bending radius: Occasional flexing: 15 x outer diameterFixed installation: 6 x outer diameterTemperature range: Occasional flexing: -5°C to +70°CFixed installation: -40°C to +80°C
