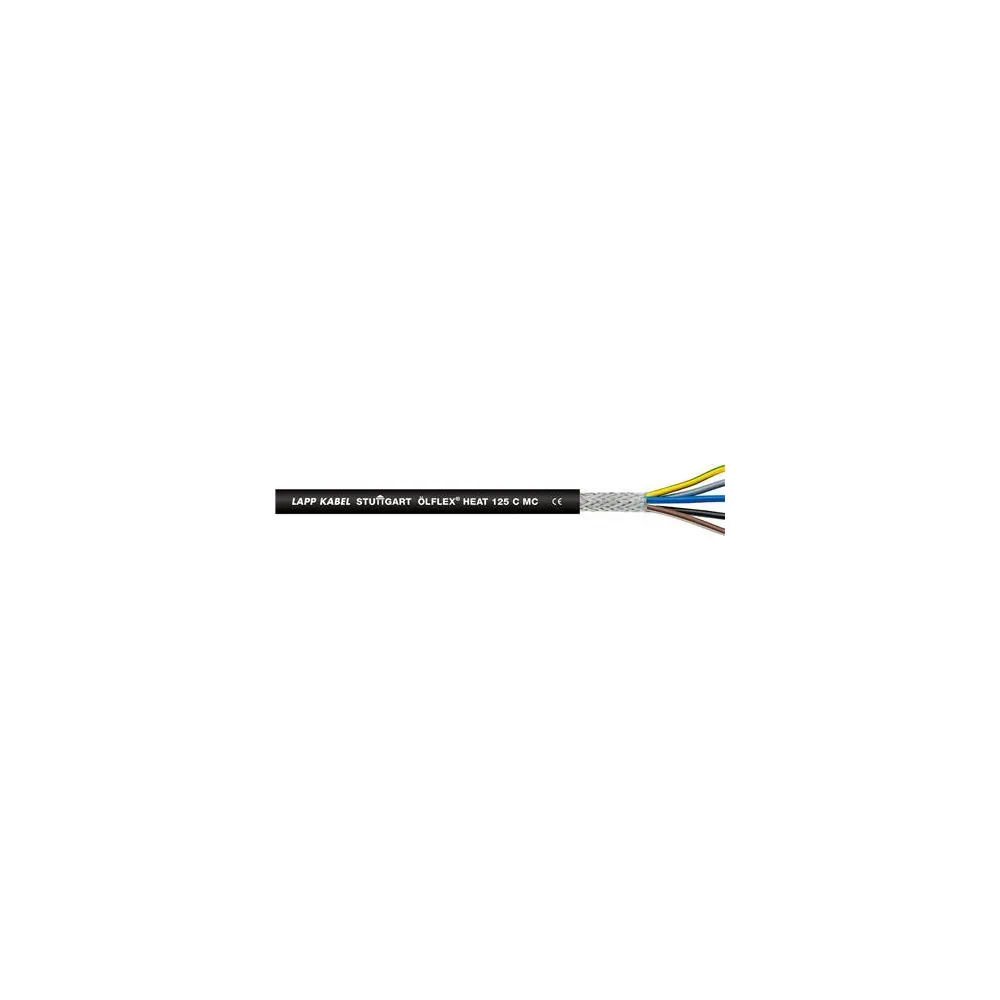

ÖLFLEX HEAT 125 C MC 3G0.75

ÖLFLEX® HEAT 125 C MCElectron beam cross-linked cables for more demanding application requirementsÖLFLEX® HEAT 125 C MC - halogen free shielded control cable with GL certificate, special fire performance, IEC 60332-3, suitable for +125°CCPR: Article number choice under www.lappkabel.dkReduction of flame propagation, density and toxicity of smoke gases in event of fire Minimises damage to buildings and equipment caused by the formation of toxic acid fumes in firesCertified for maritime applicationsCopper braiding screens the cable against electromagnetic interferenceFire behaviour:- Halogen-free (IEC 60754-1)- No corrosive gases (IEC 60754-2)- Low smoke density (IEC 61034-2)- Flame-retardant (IEC 60332-1-2,NF C 32-070 (C1) andNF-F 16-101 (Class C))- Low toxicity (EN 50305)No flame-propagation according to IEC 60332-3-22, IEC 60332-3-24 and IEC 60332-3-25 (Flame spread on vertical cable bundle)Oil-resistant acc. IEC 60227-1 (ST9) and EN 50264-1 (EM104)UV-resistant according to ISO 4892-2Ozone-resistant according to EN 50396GL - Germanischer Lloyd approved Based on EN 50525-3-21 and EN 50525-3-41Fine-wire, tinned-copper conductorElectron beam cross-linked polyolefin copolymer insulationCores twisted in layersTinned-copper braidingOuter sheath: electron beam cross-linked polyolefin copolymer, blackCore identification code: Colour-coded according to VDE 0293-308 or black with white numbers refer to article tableSpecific insulation resistance: >2 TOhm x cmConductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5Minimum bending radius: Occasional flexing: 15 x outer diameterFixed installation: 5 x outer diameterNominal voltage: Up to 1.0mm² U0/U 300/500 VFrom 1.5mm² U0/U 450/750 V0.6/1kV from 1.5 mm² in the case of fixed and protected installationTest voltage: C/C 4000 V, C/S 2500 VTemperature range: Occasional flexing: -35 °C to +120 °CFixed installation: -55°C to +125°CTemporary (3.000h): up to +145°C
