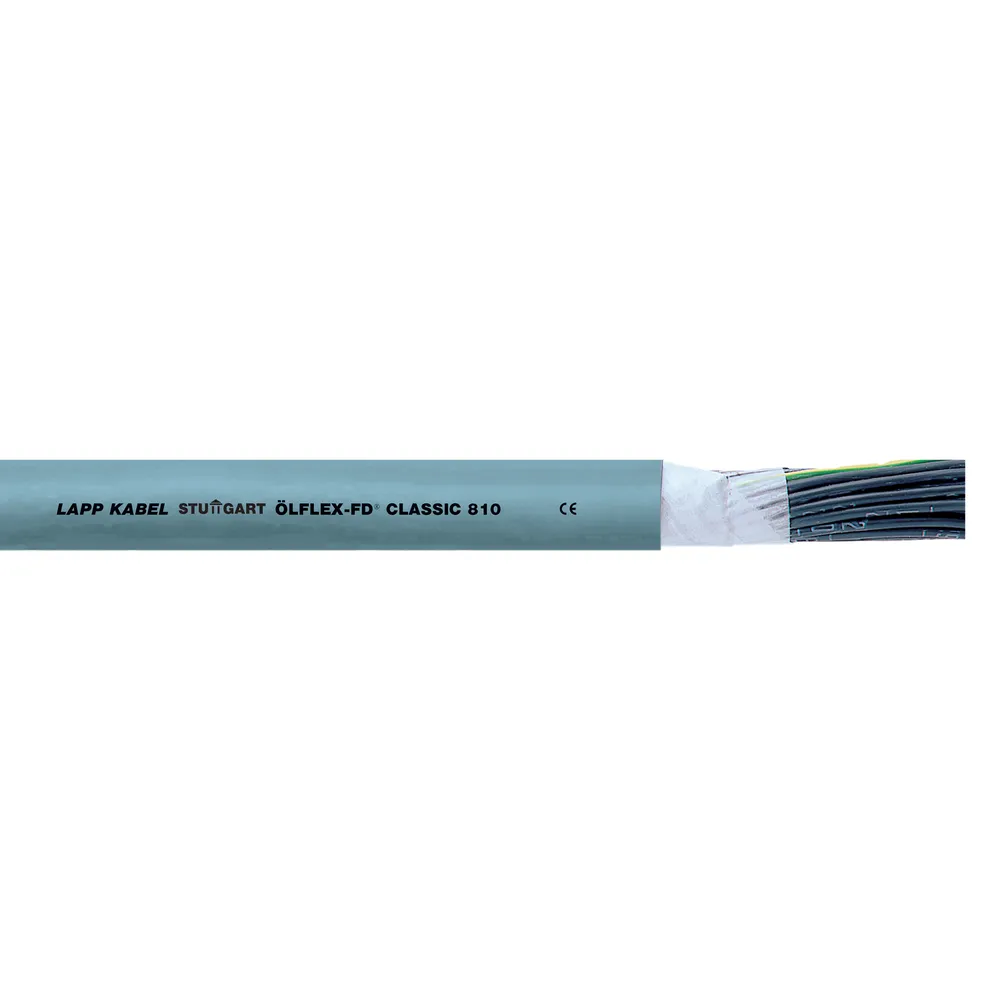

ÖLFLEX CLASSIC FD 810 2X0,5 T500

ÖLFLEX® CLASSIC FD 810Highly flexible control cable with PVC core insulation and PVC sheathÖLFLEX® CLASSIC FD 810 - Power and control cable for versatile use in power chainsCore Line for ordinary duty in power chain applicationsThe classic for multi-functional usePower chainWell-proven and reliableCost-effective solutionLow particle emission at moved chain applicationIn power chains or moving machine partsSuitable for use in measuring, control and regulating circuitsAssembly lines, production lines, in all kinds of machinesIn damp or wet interiorsOnly for outdoor use within the indicated operating temperature range, with UV-protectionDesigned for 5 million alternating bending cycles and travel distances up to 10 meterFlame-retardant according IEC 60332-1-2Low-adhesive surfaceCore based on VDE 0245/0285Outer sheath based on VDE 0245/0285Clean room classification for individual items on requestExtra-fine wire strand made of bare copper wires (class 6)Core insulation: PVCCores twisted in layers in short lay lengthsNon-woven wrappingPVC outer sheath, grey (similar RAL 7001) Core identification code: Black with white numbers acc. to VDE 0293-1Conductor stranding: Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6Minimum bending radius: For flexible use:7.5 x outer diameterFixed installation: 4 x outer diameterNominal voltage: U0/U: 300/500 VTest voltage: 4000 VProtective conductor: G = with GN-YE protective conductorX = without protective conductorTemperature range: Flexing: 0°C to +70°CFixed installation: -40°C to +80°C
