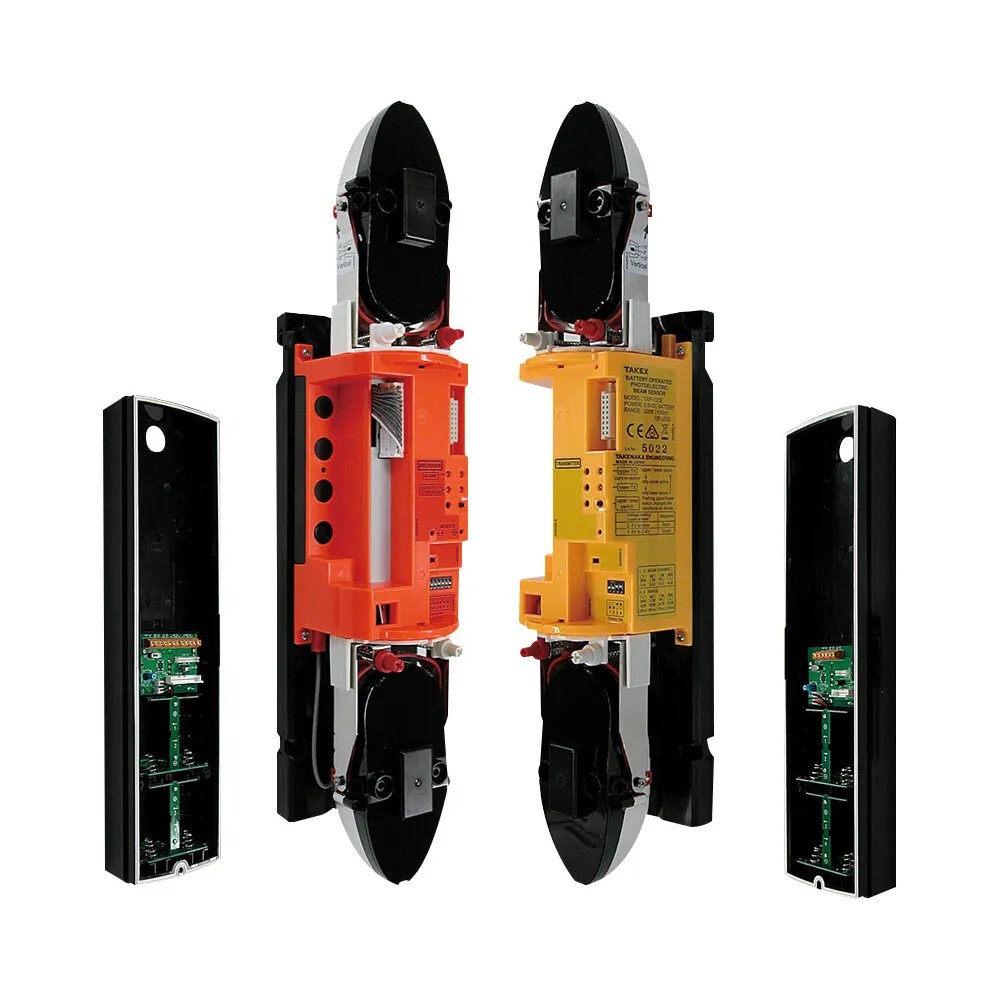

LINIEDET. BATTERI. 4 IR SKUD 100M INDBYG

TXF-125E-KH er en batteridrevet liniedetektor med 4 infrarøde skud, designet til kompatibilitet med førende trådløse systemer; reducere tid og omkostninger ved faste installationer og tillader brug af aktive infrarøde stråler som hurtig implementering eller midlertidige installationer. Med 4 valgbare frekvenser kan flere infrarøde skud anvendes i både lineære og stablede konfigurationer uden risiko for krydsning, yderligere assisteret af en transmittereffektfunktion, der gør det muligt for brugeren at indstille 25 / 50 / 75 / 100m zoner.To 3,6V (17Ah) batterier kan forsyne hver enhed i ca. 5 års drift, og ± 90 ° vandret / ± 20 ° lodret justerbar optik imødekommer de mest dynamiske terræn.Funktioner• 4 x synkroniserede højeffekt skud• 4 valgbare driftsområder 25 / 50 / 75 / 100m• 4 valgbare linie kanaler for at forhindre overskridelse• Batteriets levetid på op til 5 år ved brug af 2 x 3.6V 17Ah batterier pr. Enhed• Øget stråleseparation minimerer generende alarmer• Intern strålejustering procedure• ± 90 ° vandret ± 20 ° lodret justerbare sensorhoveder• Miljøovervågningskredsløb• For indbygning i TAS-/ TAD-/ TAW-tårne Teknisk information Model : TXF-125E-KH Detection system : Near infrared pulsed beam interruption system : (TR-RE 4 beam simultaneous interruption) Infrared beam : Single modulation pulsed beam by LED (near infrared beam light-emitting diode) Protection distance : Outdoor 330ft (100m) or less Beam power setting : 330ft (100m) / 245ft (75m) / 165ft (50m) / 82ft (25m) Max. arrival distance : 10 times : 3,300ft (1000m) Response time : 0.05 sec, 0.10 sec, 0.25 sec, 0.5 sec Modulated beam frequency selection : 4-channels Power supply voltage : 3.6VDC (recommended battery: SAFT lithium thionyl chloride battery LS33600) Current consumption : 750µA : Transmitter: Approx. 430µA (during protection) : Receiver: Approx. 320µA (during protection) : (normal temperature, 3.6V DC) Battery life : Transmitter: Up to 5 years* (2 batteries) : Receiver: Up to 5 years* (2 batteries) : *Approximate, not guaranteed ALARM OUTPUT : Dry contact relay output form C (Receiver only) : 30V DC 0.1A (resistive load) ENVIRONMENT OUTPUT : Dry contact relay output form C (Receiver only) : 30V DC 0.1A (resistive load) LOW BATTERY OUTPUT : Dry contact relay (N.C.) (Transmitter and Receiver) : 30V DC 0.1A (resistive load) POWER OUTPUT : 3.0V DC 50mA MAX (Transmitter and Receiver) : Beam adjustment : Horizontal: ±90°, Vertical: ±20° Alarm LED : Red LED (Receiver) ON: when an alarm is initiated Attenuation LED : Red LED (Receiver) ON: when an alarm is initiated Ambient temperature range : -10°C to +50°C (14°F to 122°F) Functions : Sound check : Monitor jack : Upper/lower beam switch : Low battery indication : Wireless alignment checker connection : Battery saving : Repeat output : Battery sharing Mounting position : Outdoor, Indoor Weight : Transmitter: Sensor Unit 17.5oz (500g) ,Base 21.7oz (620g) excluding batteries : Receiver: Sensor Unit 17.5oz (550g) ,Base 21.7oz (620g) excluding batteries Appearance : Sensor unit: PC/ABS resin, Base: ASA resin Black
