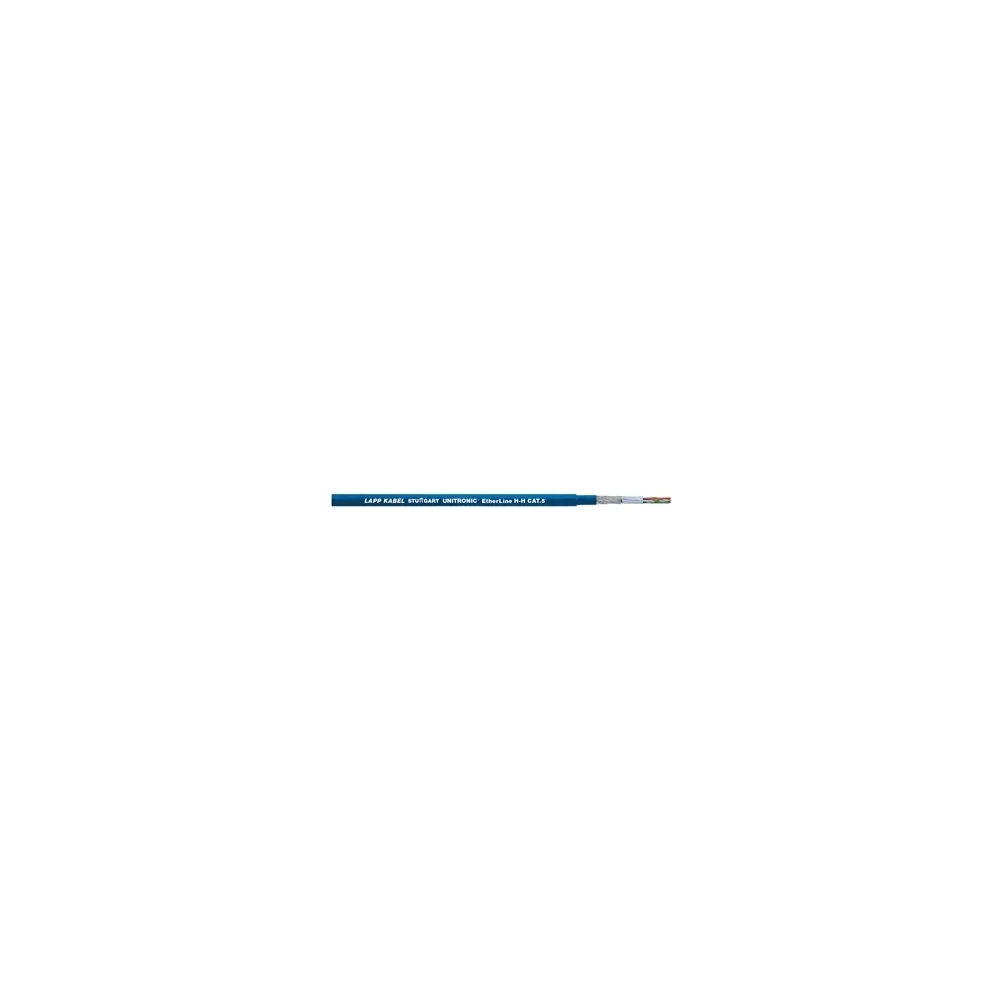

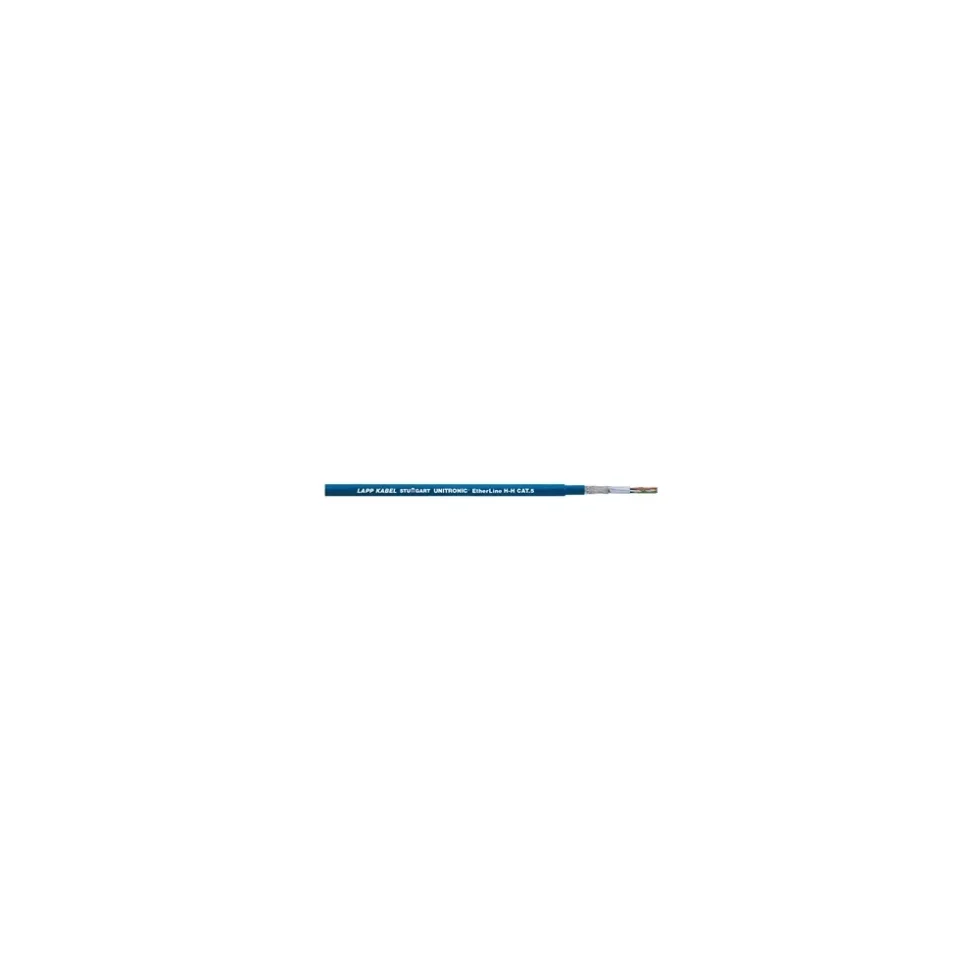

ETHERLINE H FLEX CAT.5E 4X2XAWG26/7 T500

ETHERLINE® Cat.5e FLEXEthernet cable Category 5e, Class D for flexible use - verified up to 100 MHzHalogen free or PUR outer sheath material, design 2 or 4 x2xAWG26/7Only for patch cable applications (max. 60 m)Seamless communication from the sensor/actuator level to the InternetCan be used for Industrial Ethernet in harsh industrial environmentsCables with PUR jacket: 1000 V rating for installation next to power cables2pair: 10/100 Mbit/s for Industrial Ethernet4pair: 10/100/1000 Mbit/s for Industrial EthernetSuitable for EtherCAT and EtherNet/IP applicationsFor flexible applications (7-wire stranded conductor)High-quality, double screening ensures high transmission reliability in areas with electromagnetic interferencePUR outer sheath is highly resistant to mineral oils and abrasionFlame-retardant according IEC 60332-1-2Cable with PUR or halogenfree compound: Halogen-free according to IEC 60754-1(amount of halogen acid gas)Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)Stranded conductor, bare, 7-wireCore insulation made of foam skin2 or 4-pair versionSF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screeningOuter sheath as either PUR or LSZHColour: water blue (RAL 5021)PVC jacket colour: green (based on RAL 6018)Peak operating voltage: (not for power applications) 125 VMinimum bending radius: Fixed installation: 8 x outer diameterFlexing: 15 x outer diameterTest voltage: Core/core: 1000 VCore/screen: 500 VCharacteristic impedance: 100 O ± 15%Temperature range: cable with PUR jacketFixed installation: VDE -30°C to +80°CFlexing: VDE -5°C to +50°CCable halogen free compoundFixed installation: -30°C to +80°Cflexing: -5°C to +60°Ccable with PVC jacketFixed installation: -40°C to +80°Cflexing: -10°C to +70°C
