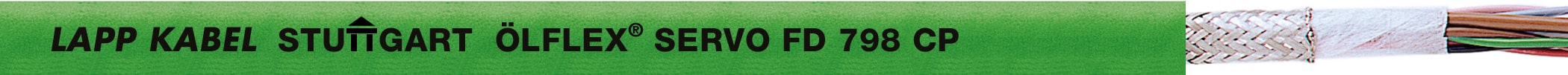

ÖLFLEX SERVO FD 798CP 4x2x0,25 T500

ÖLFLEX® SERVO FD 798 CPScreened encoder cable for high dynamic power chain application in harsh conditions withUL/CSA AWM certificationExtended Line for heavy duty in power chain applicationsFits to various encoder systemsAWM certification for USA and CanadaAllows much faster speed and accelerations which increases the economic efficiency of the machinesSuitable for use with encoders & resolvers from leading manufacturersThin, optimised for weight and volumeIncreased durability under harsh conditions thanks to robust PUR outer sheathResistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical mediaWide temperature range for applications in harsh climatic environmentsDynamic power chain performance:Acceleration up to 50 m/s².Travel speeds up to 5 m/s.Travel distances up to 100 m.Flammability: UL/CSA: VW-1, FT1IEC/EN: 60332-1-2Halogen-free materialsLow-capacitance designAbrasion and notch-resistantOil-resistantUL AWM Style 20236CSA AWM IA/B; IIA/B FT 1UL File No. E63634For use in power chains: Please comply with assembly guideline Appendix T3Fine-wire or extra-fine wire, tinned-copper conductorCore insulation: polypropylene (PP)Cores (or core pairs) twisted in layers or bundlesRefer to data sheet for more detailsNon-woven wrappingPUR outer sheath, green (RAL 6018) Core identification code: Details see datasheet ÖLFLEX® SERVO FD 798 CPConductor stranding: Fine wire or extra-fine wireMinimum bending radius: Flexible use: 7.5 x outer diameterFixed installation: 4 x outer diameterNominal voltage: IEC: 30 VUL & CSA: 30 VTest voltage: Core/core: 1500 V rmsCore/screen: 750 V rmsTemperature range: Flexing: -40°C to +90°C (UL/CSA: +80°C)Fixed installation: -50°C to +90°C (UL/CSA: +80°C)Alternating bending cycles: 10 mio. cycles
