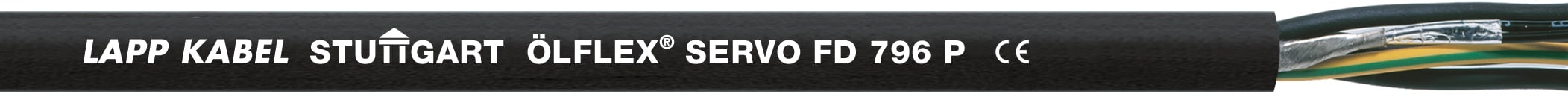

ÖLFLEX SERVO FD 796P 4G2,5+(2×1,5) T500

ÖLFLEX® SERVO FD 796 PServo cable with PUR outer sheath for highly dynamic power chain application.ÖLFLEX® SERVO FD 796 P - Servo cable for high dynamic power chain application in harsh conditions with UL/CSA AWM andInfoAWM certification for USA and CanadaVDE-tested characteristicsApplication rangeConnecting cable between servo controller and motorIn power chains or moving machine partsFor use in assembling & pick-and-place machineryParticularly in wet areas of machine tools and transfer linesFor indoor and outdoor useProduct featuresDynamic power chain performance:Acceleration up to 50 m/s².Travel speeds up to 5 m/s.Travel distances up to 100 m.Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meterFlammability:UL/CSA: VW-1, FT1IEC/EN: 60332-1-2Halogen-free materialsAbrasion and notch-resistantOil-resistantNorm references / ApprovalsVDE - reg - no. 8591 (= 4G1,5)UL AWM Style 20234cULus AWM I/II A/B, 1000V 80° FT1CSA AWM I/II A, 1000V 80° FT1UL File No. E63634Product Make-upCore insulation: polypropylene (PP)According to P/N individual design: Power cores with one or with two control pair(s), twisted together in short lay lengthNon-woven wrappingPUR outer sheath, black (RAL 9005)Technical DataCore identification code: Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-;GN/YE protective conductorSingle-paired versions: black; whiteDouble-paired versions: black with white numbers 5; 6; 7; 80,34mm² pairs: WH/BN/GN/YEConductor stranding: Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6Minimum bending radius: 7.5 x outer diameterFixed installation: 4 x outer diameterNominal voltage: IEC U0/U: 600/1000 VUL & CSA: 1000 VTest voltage: Core/Core: 4 kVCore/Screen: 2 kVProtective conductor: G = with GN-YE protective conductorTemperature range: Flexing: -40°C to +90°C(UL/CSA: +80°C)Fixed installation: -50°C to +90°C(UL/CSA: +80°C)
