ÖLFLEX SERVO FD 796CP 4G35 T500

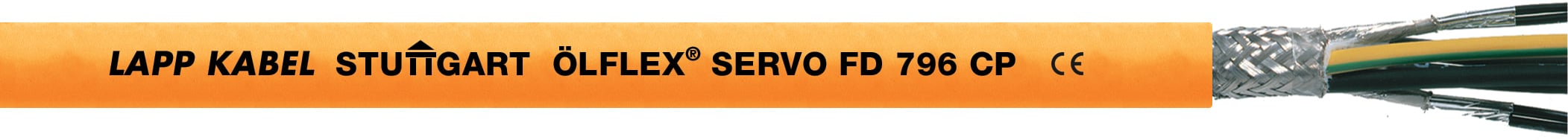

ÖLFLEX® SERVO FD 796 CPScreened servo cable with PUR outer sheath for highly dynamic power chain application in harsh conditions with UL/CSA AWM and VDE certificationExtended Line for heavy duty in power chain applicationsAllows much faster speed and accelerations which increases the economic efficiency of the machinesSuitable for use with servomotor product lines from leading drive manufacturersLonger cable connection possible between frequency converter and motor due to low capacitance designResistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical mediaWide temperature range for applications in harsh climatic environmentsCopper braiding screens the cable against electromagnetic interferenceConnecting cable between servo controller and motorFor use in assembling & pick-and-place machineryParticularly in wet areas of machine tools and transfer linesAssembly lines, production lines, in all kinds of machinesFor indoor and outdoor useDynamic power chain performance:Acceleration up to 50 m/s².Travel speeds up to 5 m/s.Travel distances up to 100 m.Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meterFlammability:UL/CSA: VW-1, FT1IEC/EN: 60332-1-2Halogen-free materialsAbrasion and notch-resistantOil-resistantVDE - Reg. - No. 8591(0027925,..926,..927,..930 pending)UL AWM Style 20234cULus AWM I/II A/B, 1000V 80° FT1CSA AWM I/II A, 1000V 80° FT1UL File No. E63634For use in power chainsExtra-fine wire strand made of bare copper wires (class 6)Core insulation: polypropylene (PP)Individual design depending on the item:Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;Power cores with control core triplet twisted together in short lay lengthsNon-woven wrappingTinned-copper braidingPUR outer sheath, orange (RAL 2003)
